How to Identify 12V and 24V Excavator Electrical Parts
Match solenoids, sensors, relays and electronic components using voltage, connector, pin layout, label and machine information.

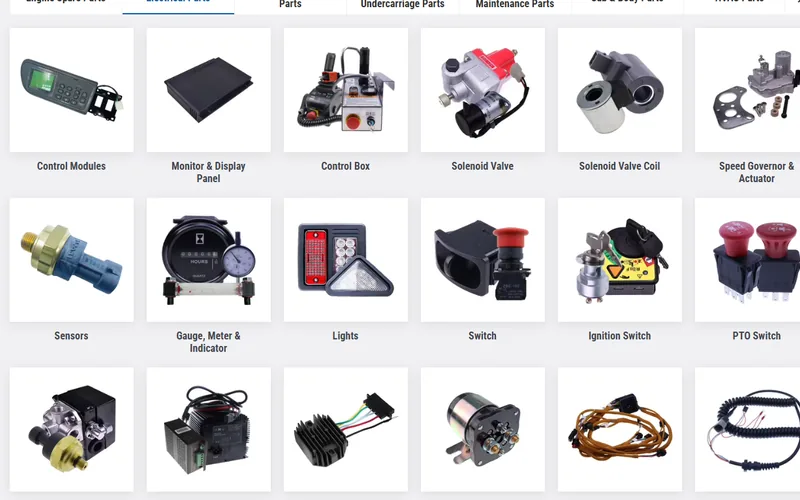

Quick answer
Never choose an excavator solenoid, relay or other electrical part from body shape alone. Confirm the rated voltage, complete part number, connector shape, pin count, wire position, coil or resistance specification when available, and machine serial number. A 12V component and a 24V component may look identical but are not interchangeable.
Confirm system voltage from reliable evidence
Check the component label, machine electrical specification and old part number. Do not rely only on battery arrangement because field modifications and series/parallel connections can cause confusion.
For a solenoid coil, photograph the voltage marking. If the marking is missing, a technician can test the circuit and component safely before ordering.
- Rated voltage printed on the component
- Machine electrical-system specification
- Old part number and manufacturer
- Technician measurement when the label is unreadable
Match connector and pin configuration
Two sensors or solenoids may share a body and thread but use different plugs or pin assignments. Photograph the connector straight-on and from the side, showing keyways, locks, seals and pin count.
For a wired component, show wire colors and length without cutting the old harness first. Connector details are fitment evidence, not a replacement for the complete part number.
- Connector face and locking tab
- Pin count and pin arrangement
- Wire colors and cable length
- Thread, port or mounting dimensions
Separate the part from the fault diagnosis
A fault code can be caused by wiring, supply voltage, ground, connector corrosion, controller output or the component itself. Diagnostic testing should be completed before buying the replacement.
Send the fault code and symptom as supporting context, together with the identified component. This helps the supplier understand the request but should not be treated as proof of failure.
- Check power supply and ground
- Inspect connector damage and corrosion
- Test harness continuity when appropriate
- Record the exact fault code and machine behavior
Common electrical RFQ mistakes
Common mistakes include hiding the label, omitting voltage, photographing only the top of the plug, and using a marketplace picture instead of the actual old part. These shortcuts increase wrong-part risk.
For controllers and monitor panels, also send software or hardware codes shown on labels. Electronic modules may require configuration after installation, which should be discussed before purchase.
- Do not crop the number or voltage
- Use photos of the actual removed part
- Show every connector on controllers
- Ask about programming or calibration requirements
Electrical identification essentials
| Part type | Minimum buyer data | Extra caution |
|---|---|---|
| Solenoid valve/coil | Voltage, number, plug, thread/port and function | Same body may use different voltage or hydraulic specification |
| Sensor/switch | Part number, connector, thread and installation position | Fault code alone does not identify the part |
| Relay/contactor | Voltage, current rating, terminal layout and number | Terminal function and rating must match |
| Controller/monitor | All labels, every connector and machine serial | Programming or configuration may be required |
Buyer checklist before requesting a quote
- Machine model and serial number
- Exact voltage marking
- Complete part label
- Connector face and side photos
- Pin count, wire position and mounting details
- Fault code and completed diagnostic checks
Frequently asked questions
Can a 24V solenoid replace a 12V solenoid?
No. The voltage rating must match the system and component specification. Using the wrong voltage can prevent operation or damage the part.
Is the connector shape enough to identify a sensor?
No. Connector, thread, sensing range and internal specification can differ even when the housing looks similar.
Do excavator controllers need programming?
Some modules may require programming, parameter setup or model-specific configuration. Confirm this before purchase.
